Why arduino reboots at shredder pro?

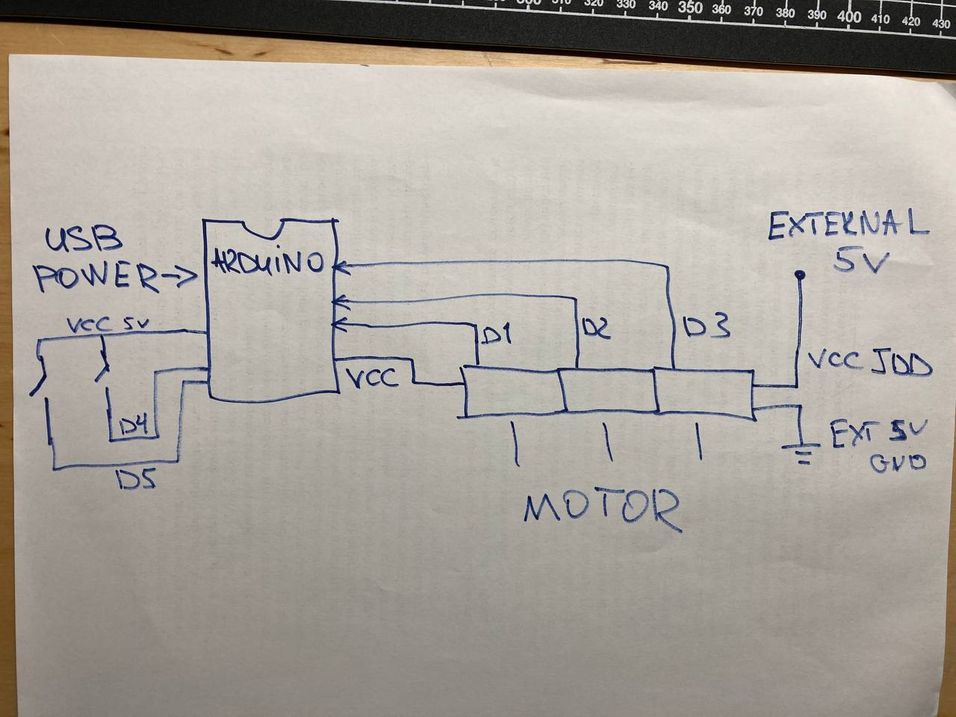

Hello community! Has anyone had a problem with the electronics of the shredder pro? For some reason my Arduino reboots at the moment when the contacts closing or opening... The relay power supply is separate from the Arduino power supply and they do not have a common ground. Has anyone encountered this? Any guesses? Thank you very much! Have a nice day!
