What type of engine and space we need for our extruder?

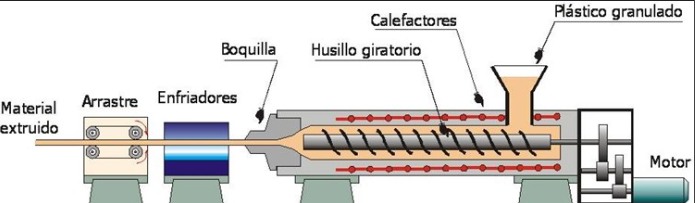

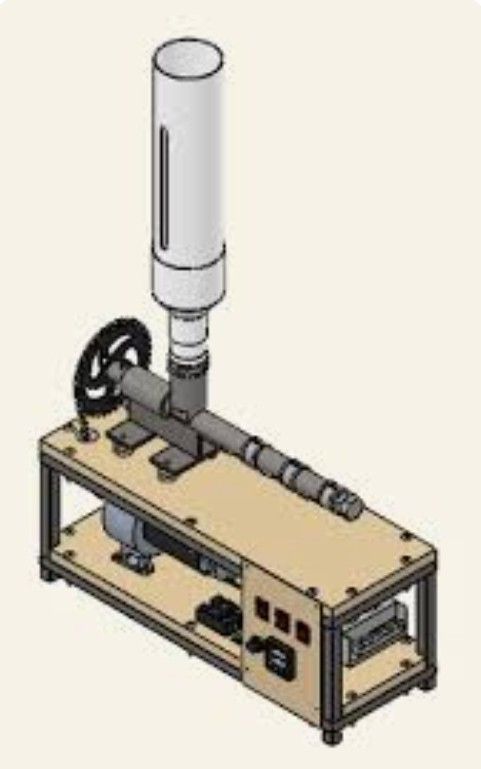

We´re students from a VET school, and we need to design a extruder machine with the same spindle that is used in the following video: https://community.preciousplastic.com/academy/build/extrusion . A spindle that goes from 18 to 26 diametre and 790mm of length. If we need to create a nozzle with 1,75 diametre hole and the plastic material that we´re using is PLA, how many revolutions should the engine have? and what is the best engine for the extruder? Futhermore, we would like to know what is the space between the spindle and the barrel. Thank you in advance for your help. I look foward to hearing from you, Clara, Ugaitz and Hugo
extrusion
