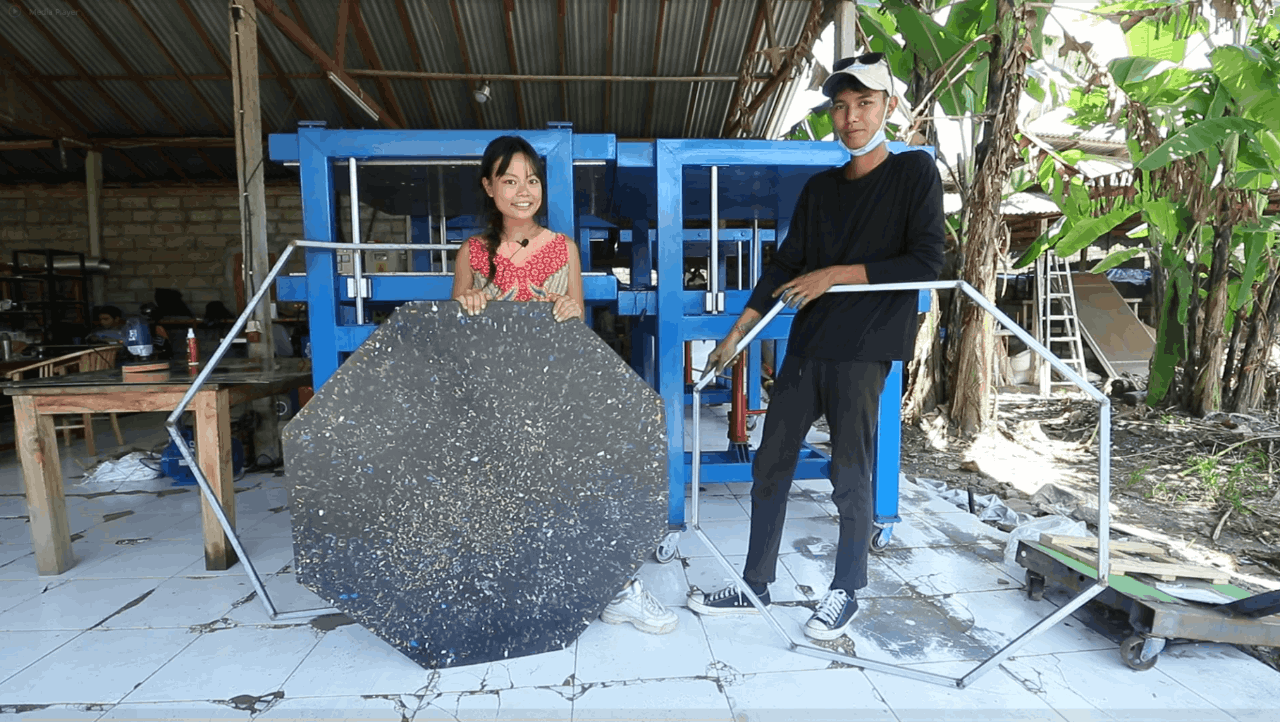

Polygonal mould for sheet press

Plastic sheets made with sheet press don't need to be square. Here we are showing you how to create octagonal mould to create octagonal plastic sheets. The same methods can be applied to create any polygonal mould for the sheetpress (triangle, hexagonal, etc) You can watch the full video tutorial on precious plastic’s youtube channel here: https://www.youtube.com/watch?v=WSZq_9a-XMQ&t=81s Don't hesitate to contact us if you have any questions and suggestions for the mould. You can click on our precious plastic profile for the contact information

< 1 day

Medium

More Information

1159 views

14 useful

0 comments

6 steps

1 Gather tools and material

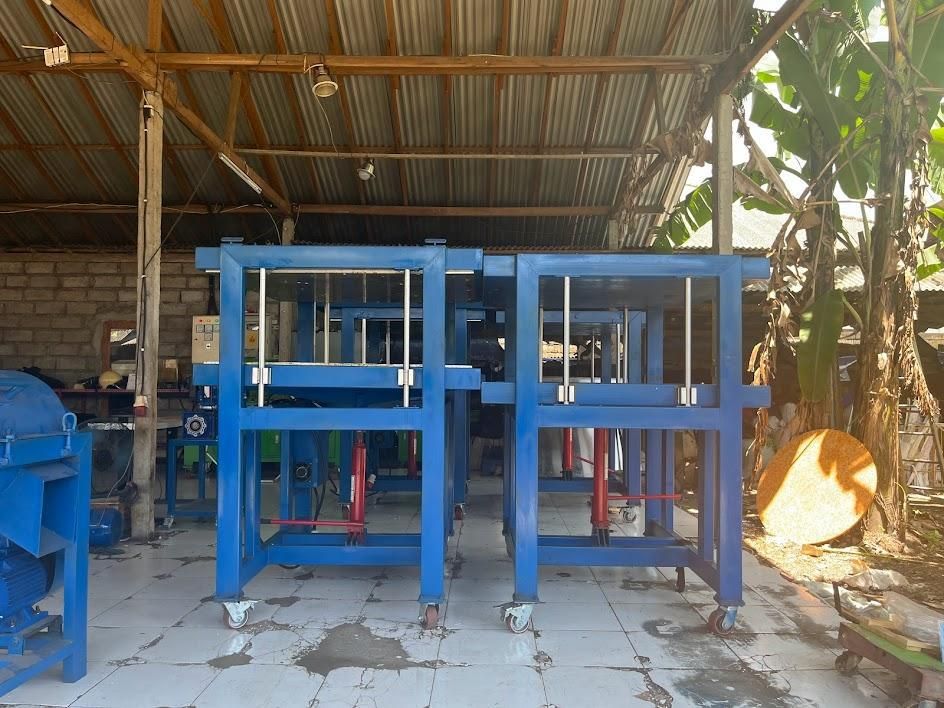

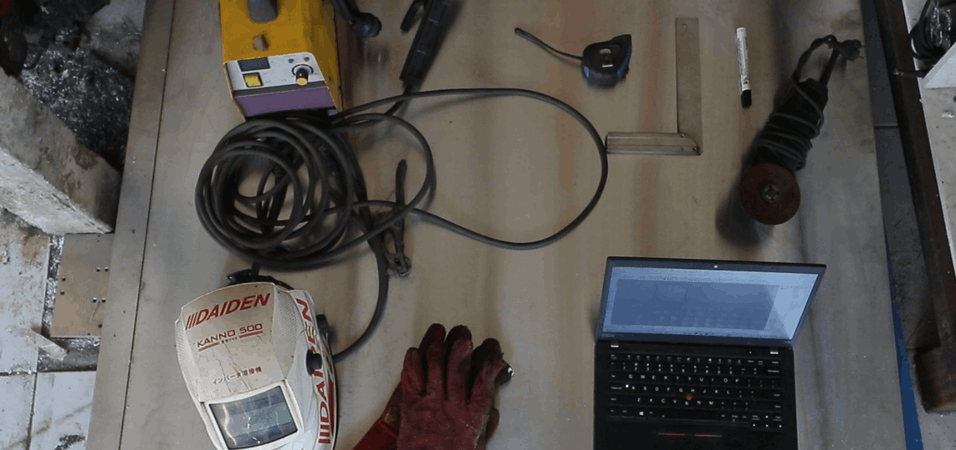

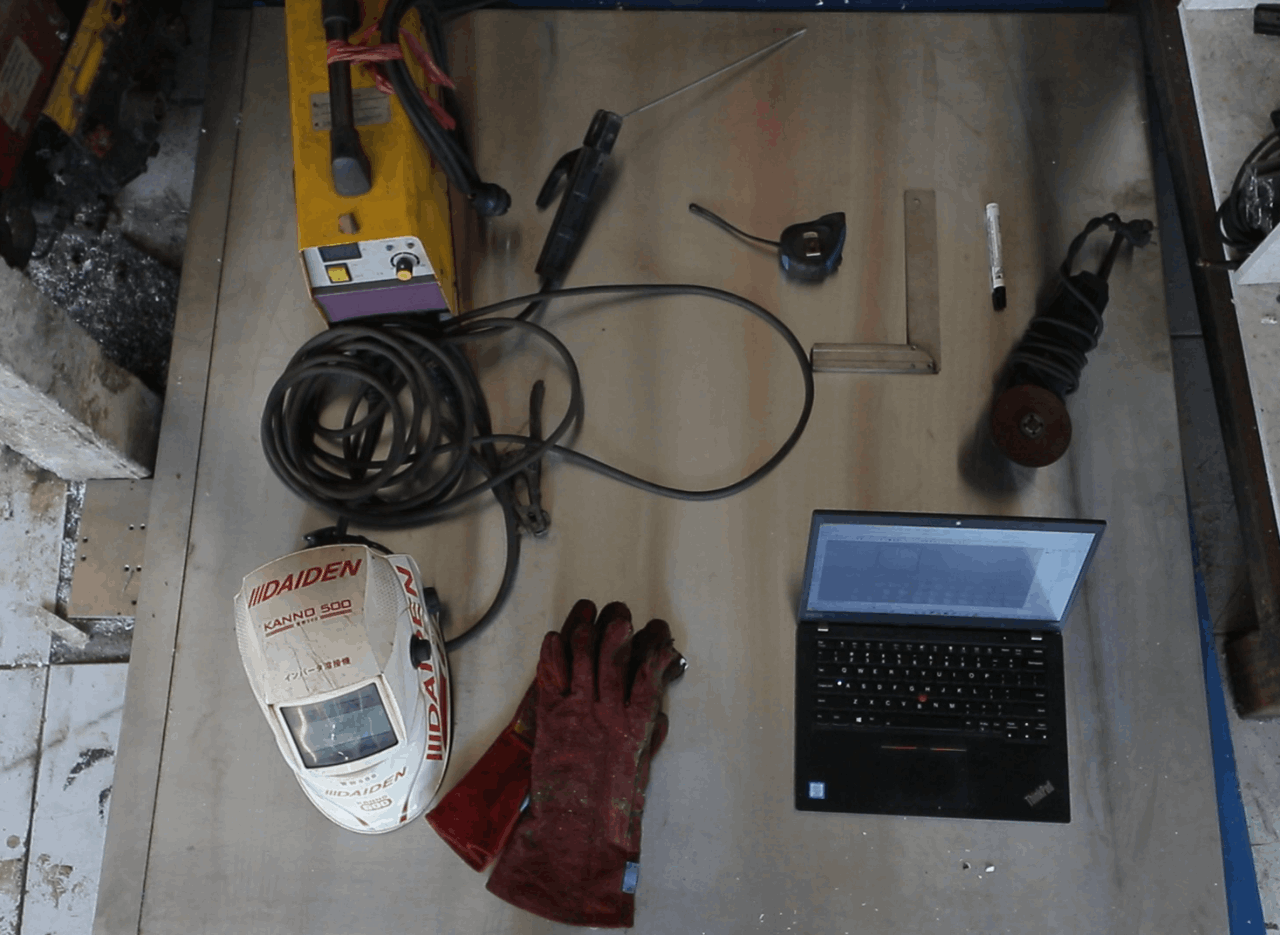

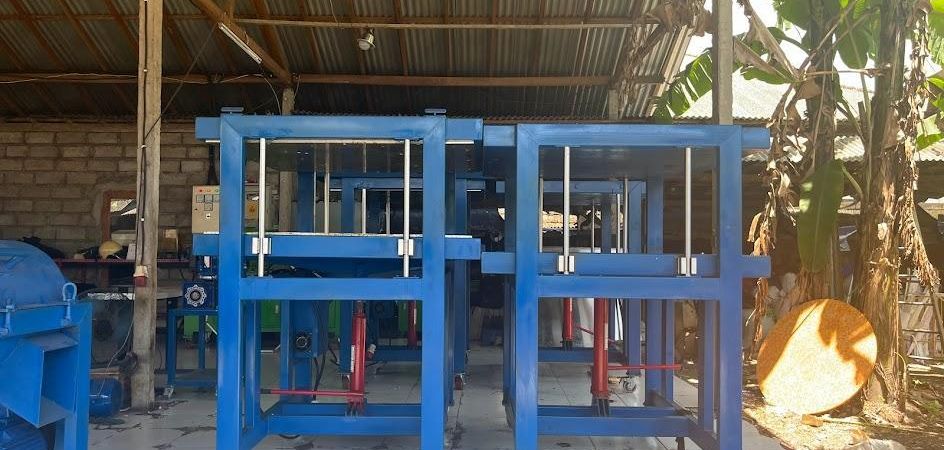

Tools: Sheet press set Angle grinder Welding tools and materials Jigsaw Sander (for product finishing) Safety gears: welding helmet, safety glasses, mask Marker Ruler Computer with drafting/drawing software Material Steel for mold: 2x2cm galvanised steel (standard size =6m) Clean, sorted plastic with types of your choice

2 Draw

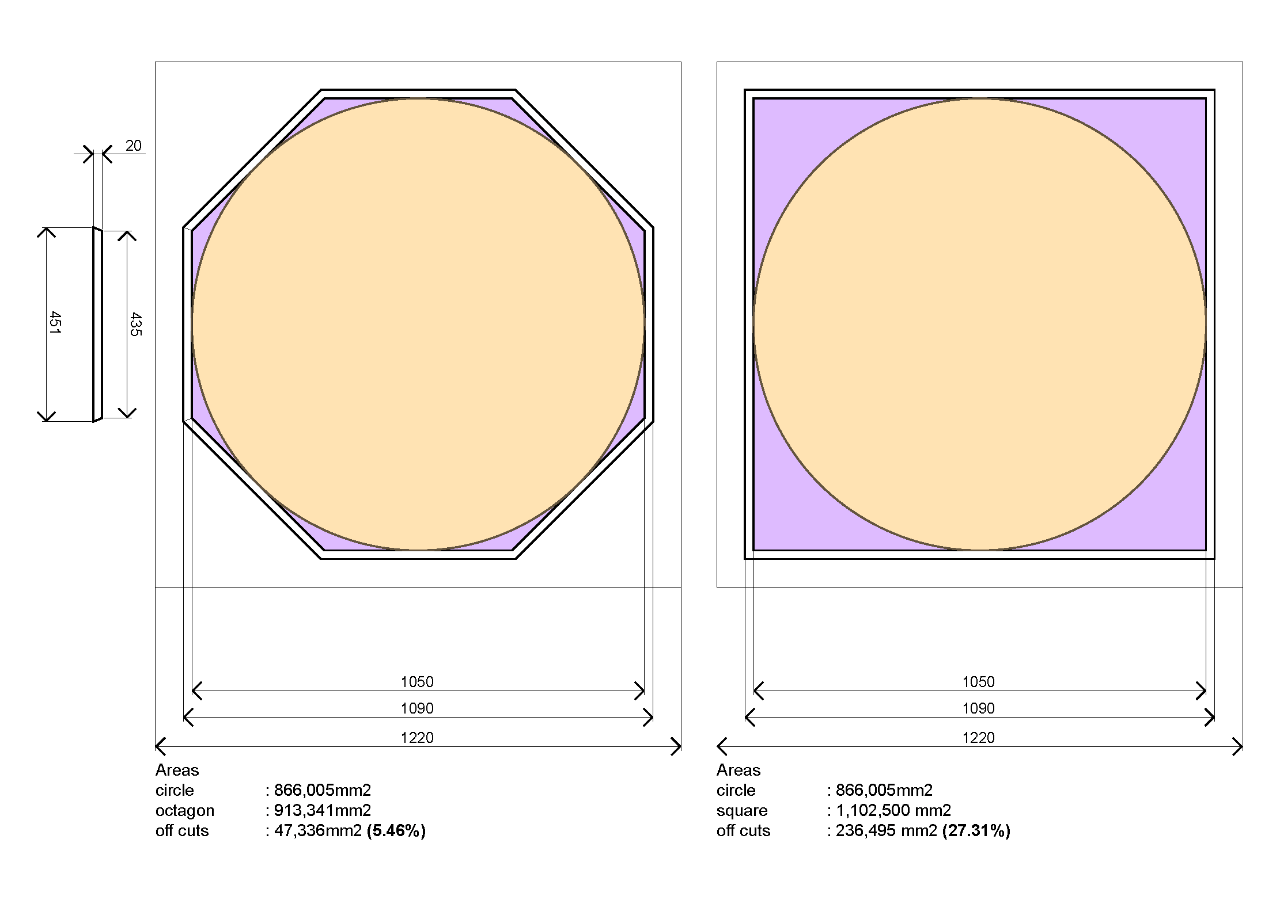

Draw the polygon in any drafting software of your choice. This will give you precise information on the dimension of the individual parts/side of the polygon. We have included our drawing in the drive link above for reference Draw the measurement of your sheepress work area Offset by 5 cm inwards (space needed around the mould) Draw polygon according to the area capacity of your sheet press machines Offset by 2 cm inwards (thickness of the galvanise steel) Get measurement of dimensions of the mould from the drawing you’ve made this drawing would also be useful later on when you are calculating the amount of plastic you need to make the sheets.

3 Cut

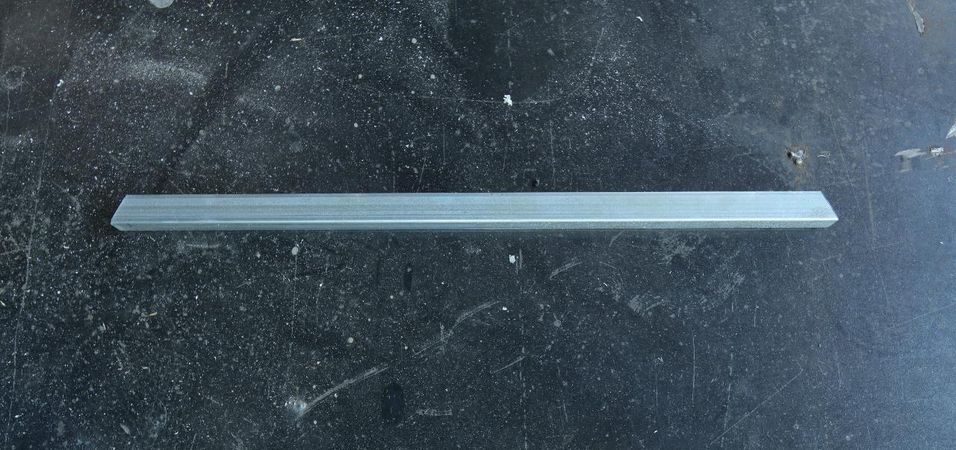

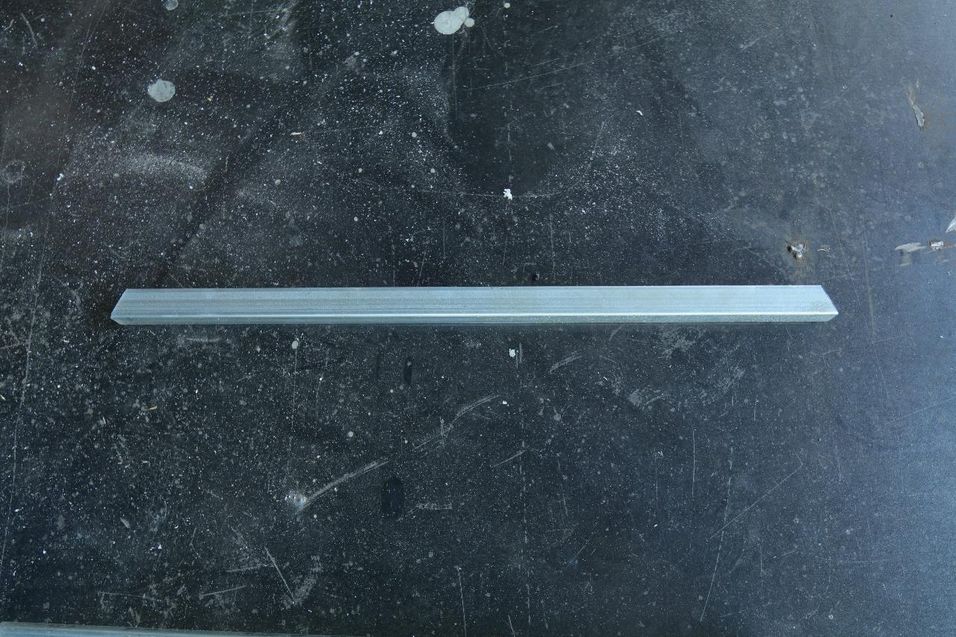

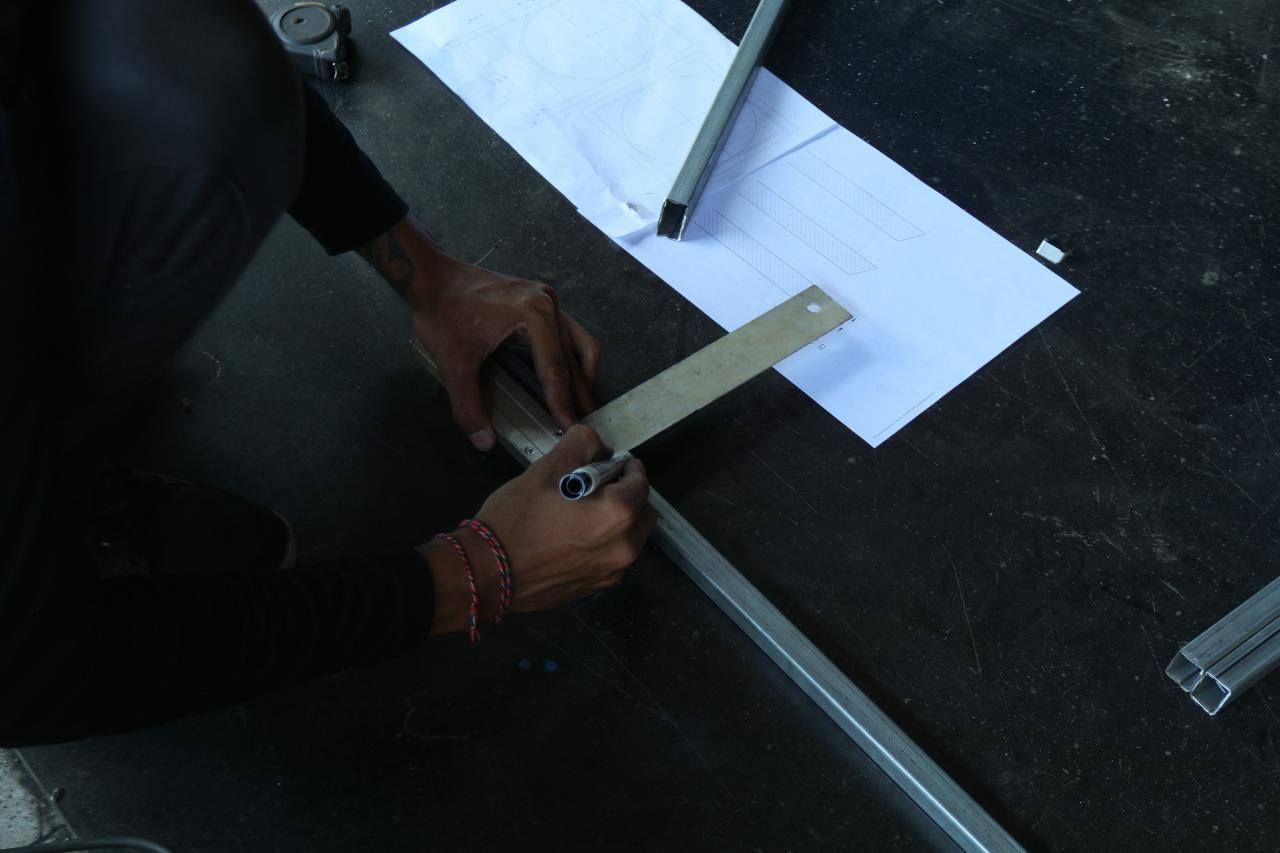

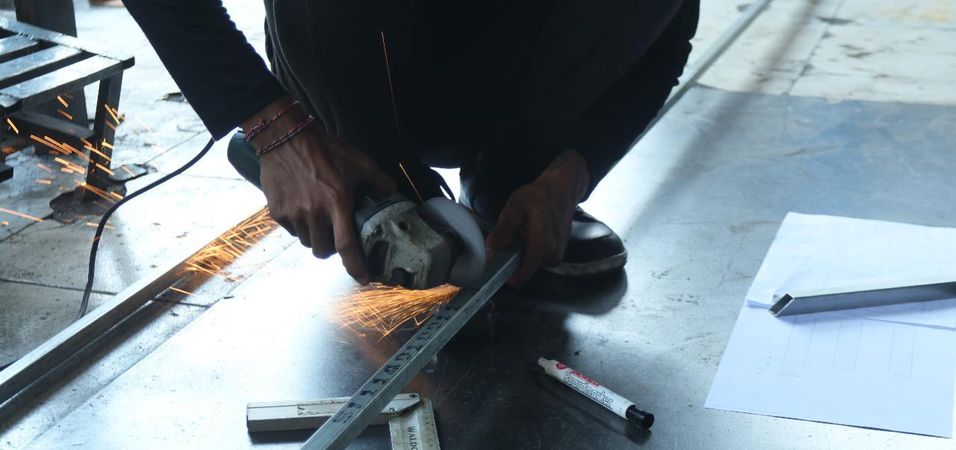

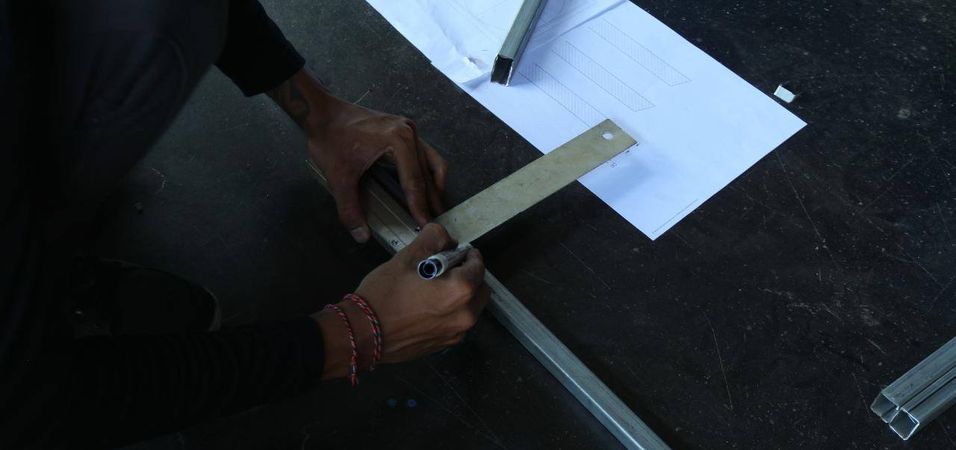

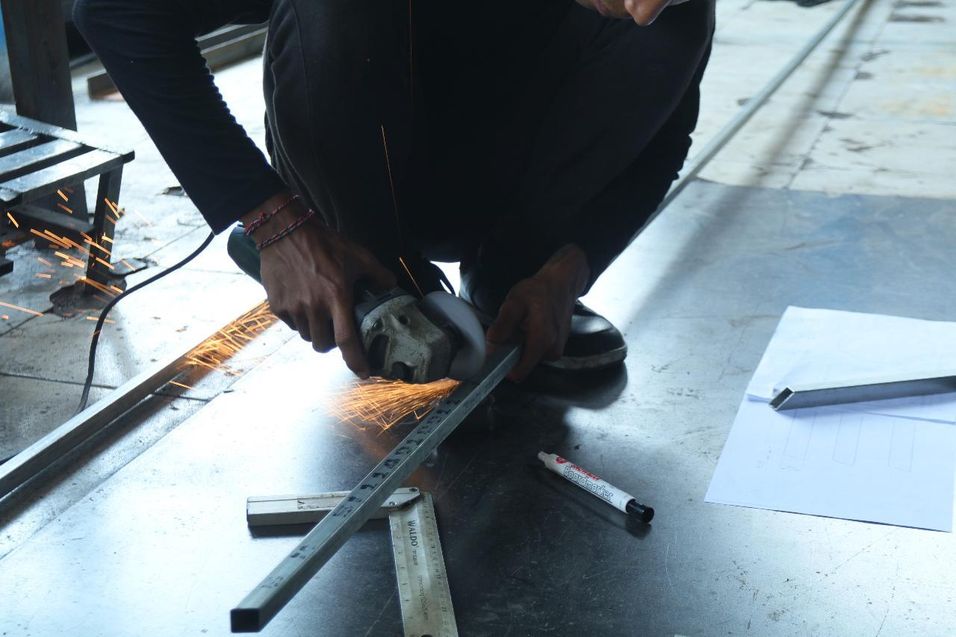

After drawing and determining the measurements, cut the 20mm hollow galvanized steel according to size with an angle grinder. Draw the measurement with erasable marker for better precision Cut with angle grinder With whiteboard marker, draw out the 1:1 template of your sheets to make sure the angles and dimension line up and adjust accordingly

4 Weld

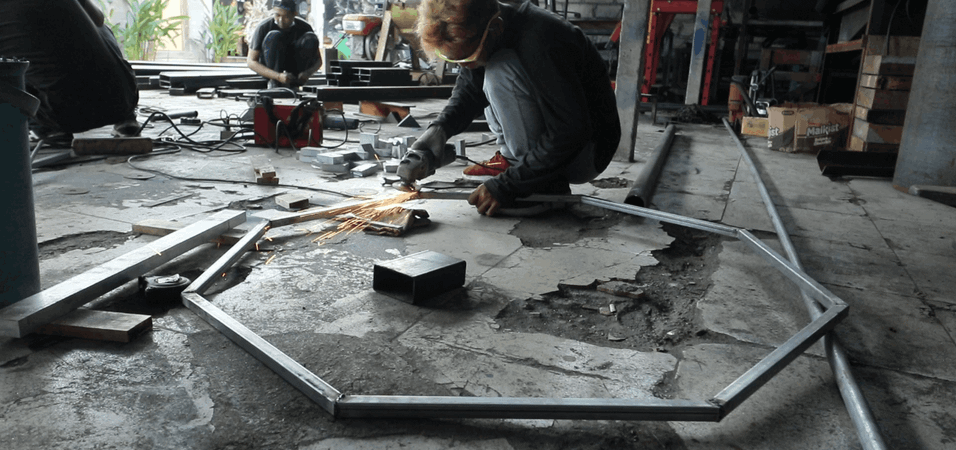

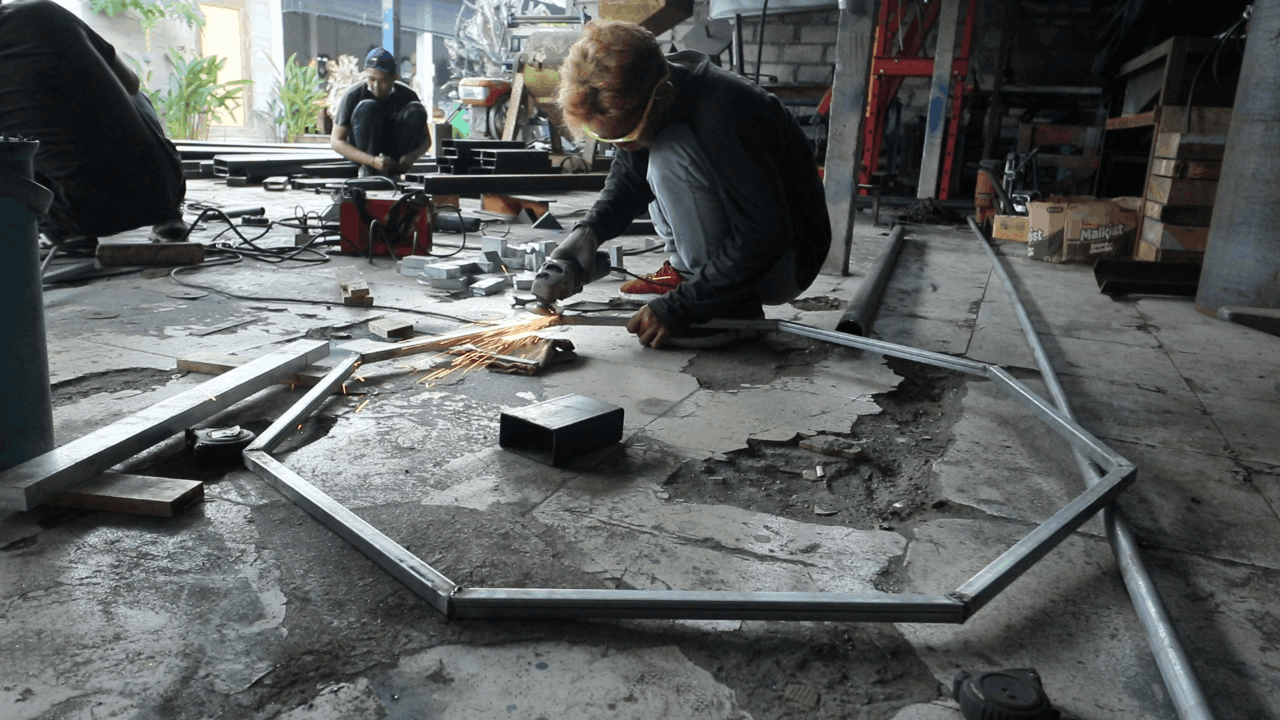

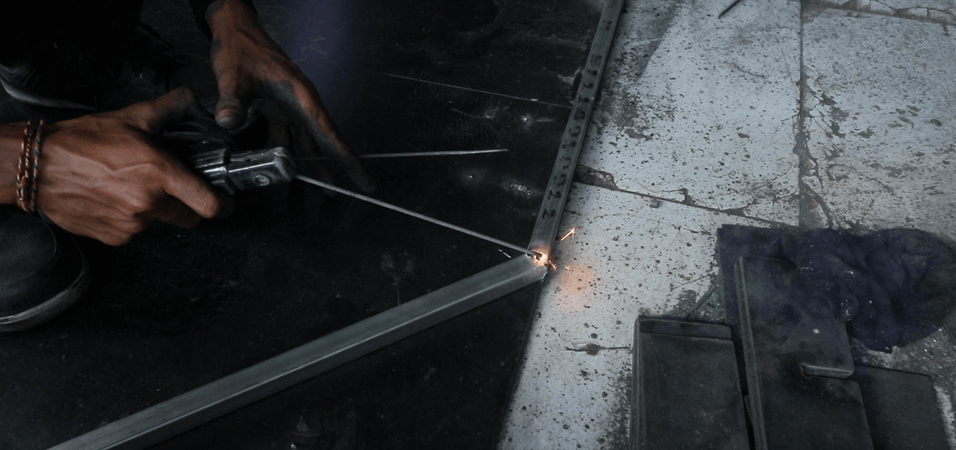

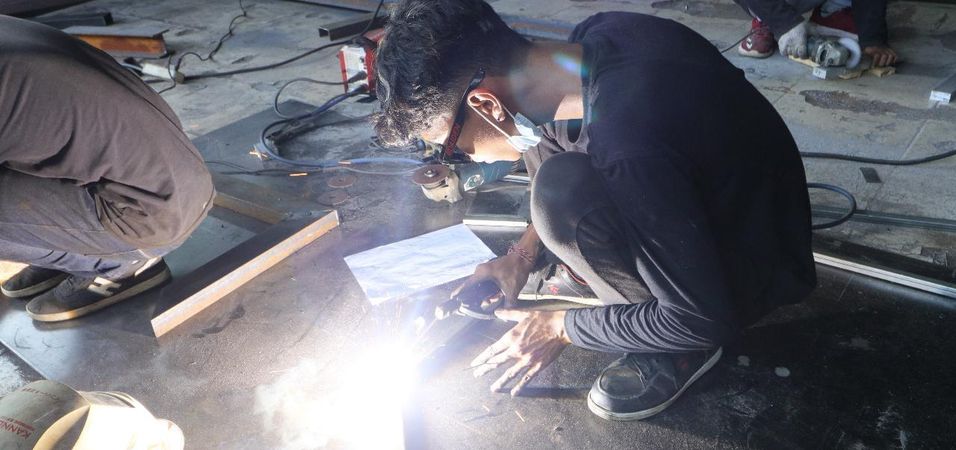

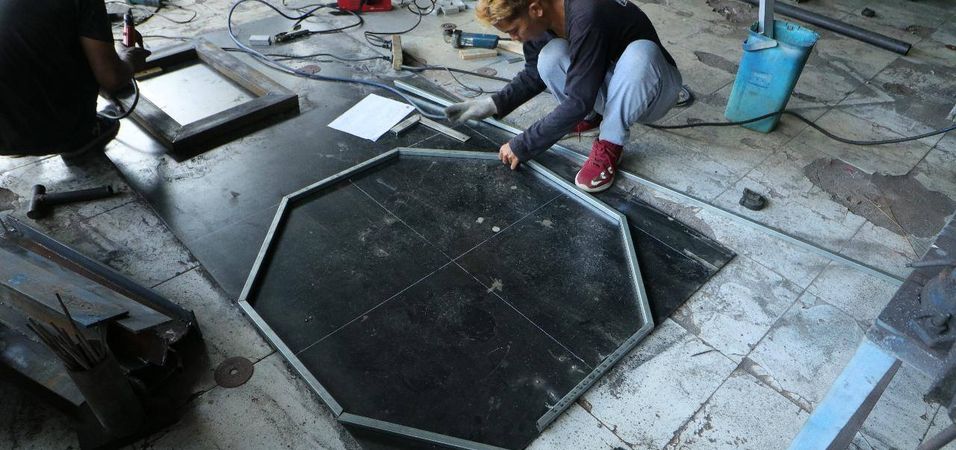

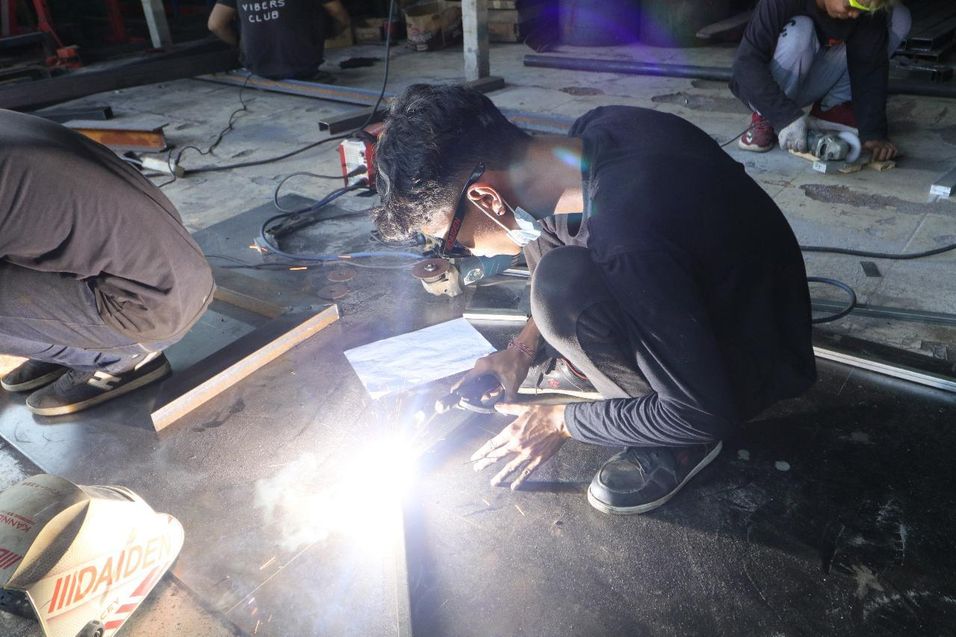

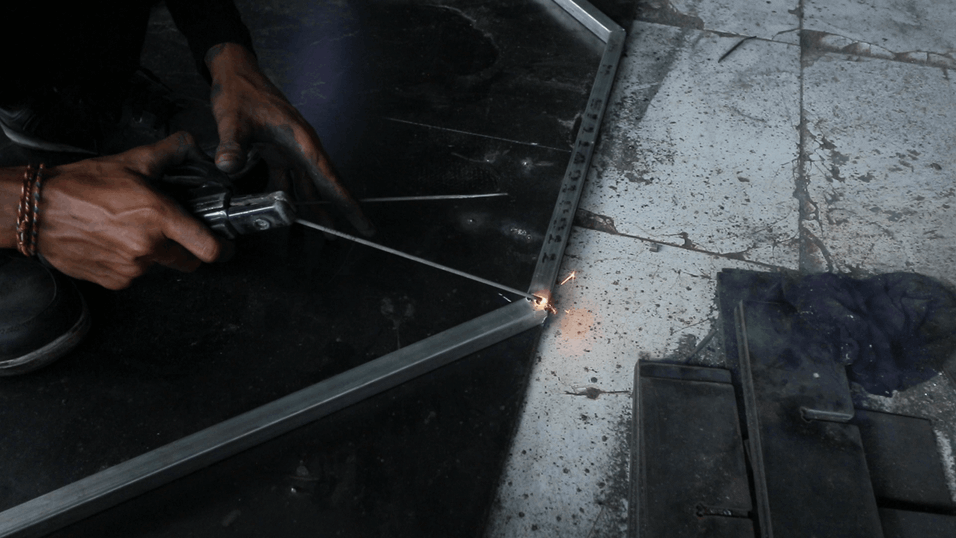

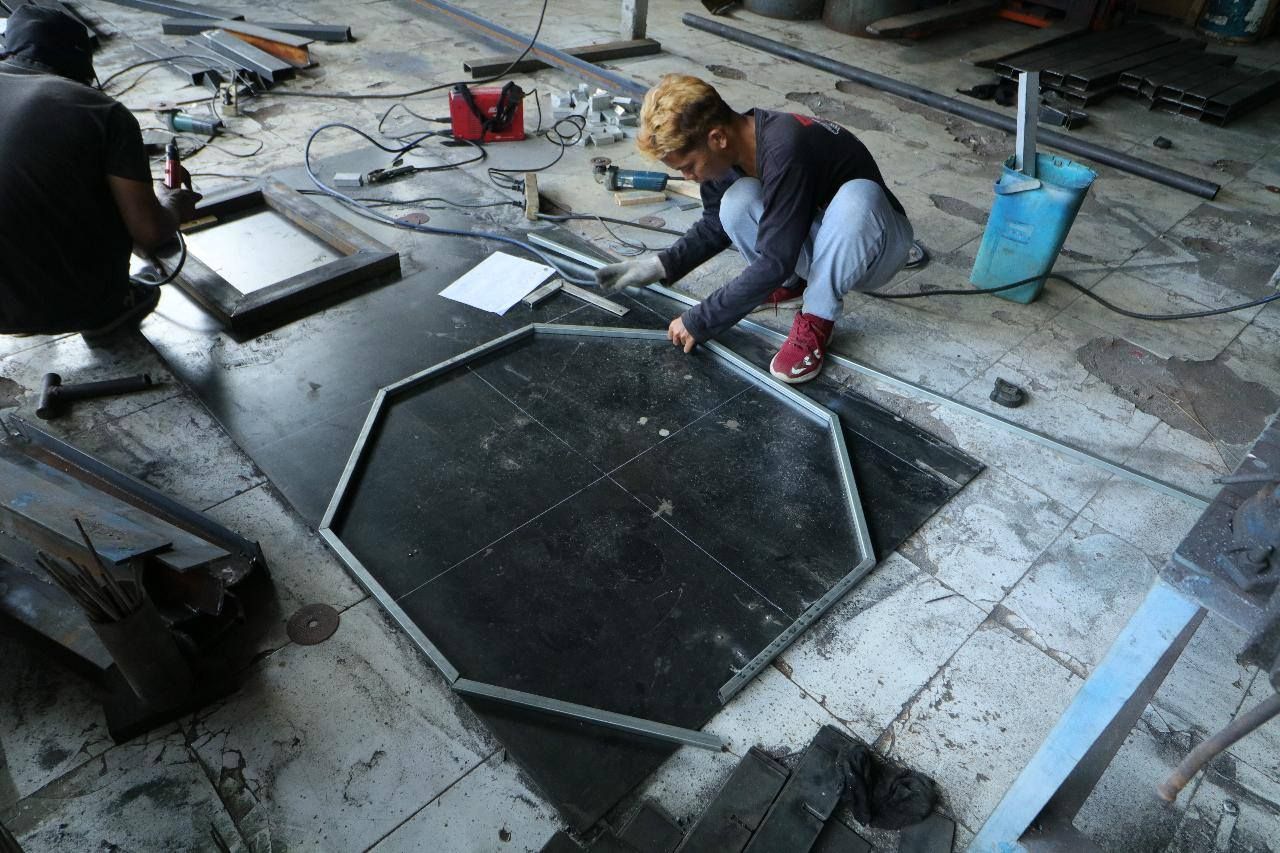

With whiteboard marker, draw out the 1:1 template of your sheets to make sure the angles and dimension line up and adjust accordingly. Weld all the sides to connect the ends together to make your polygonal sheets

5 Finishing

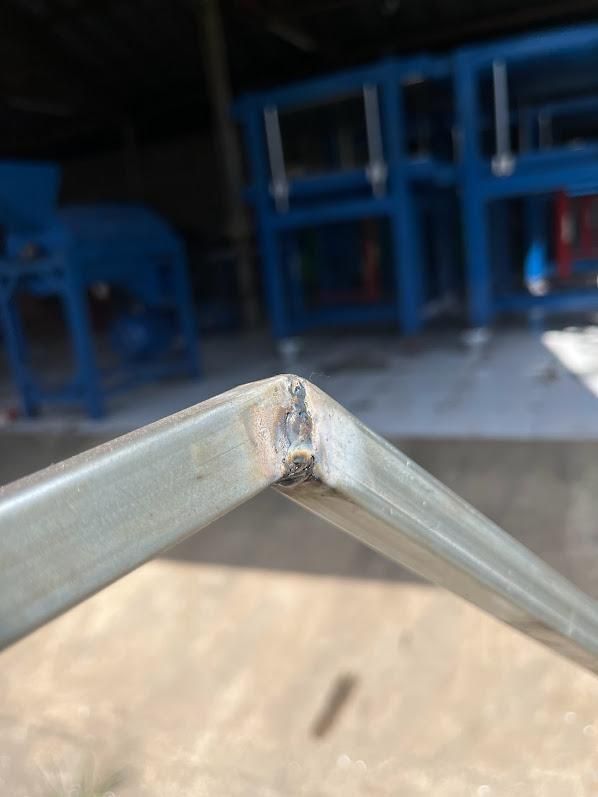

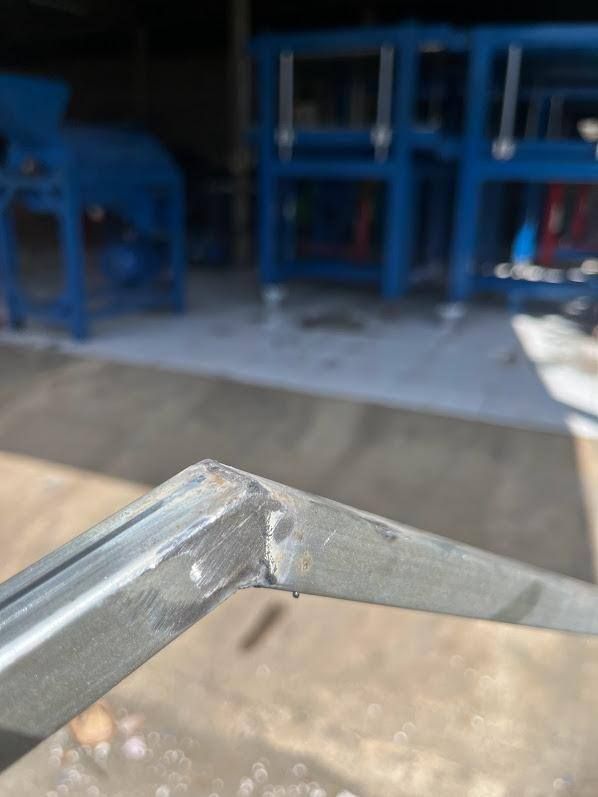

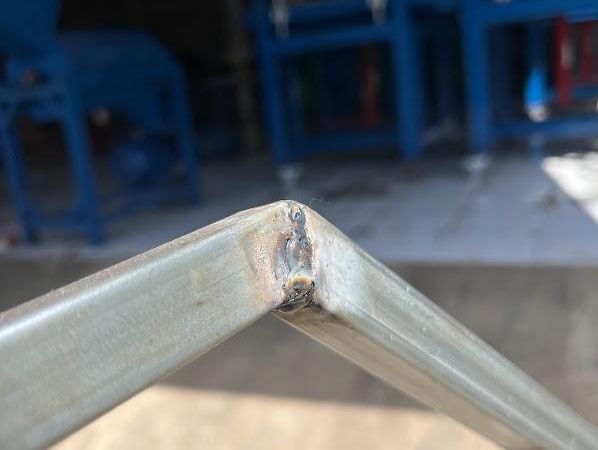

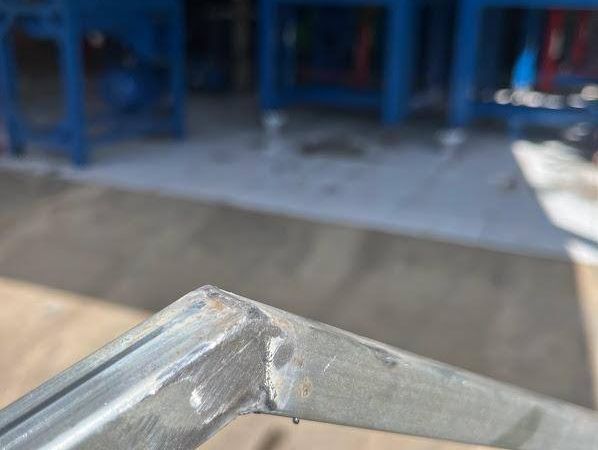

Grind the excess welding materials with angle grinder This step is crucial to make sure that the mould is completely flat against the sheets. Otherwise you will damage the steel plate and the plastic will bleed outside of the mould because it is thicker than it should be.

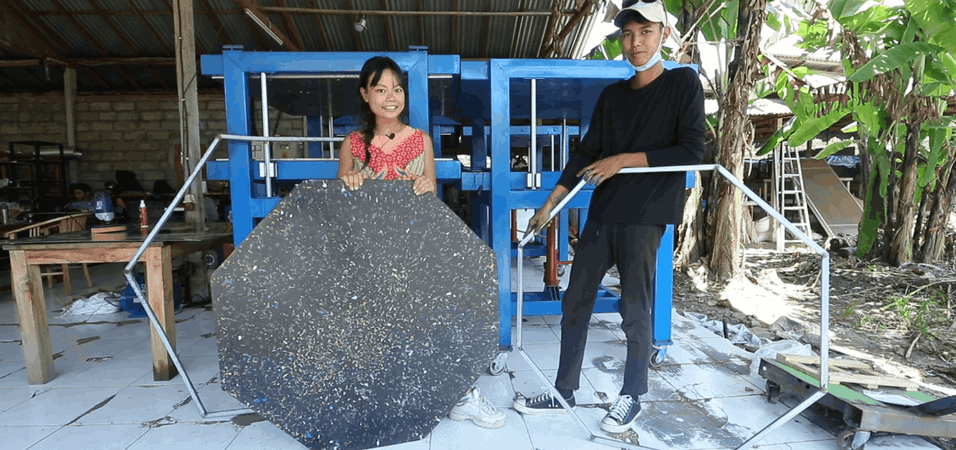

6 Make your polygonal sheet

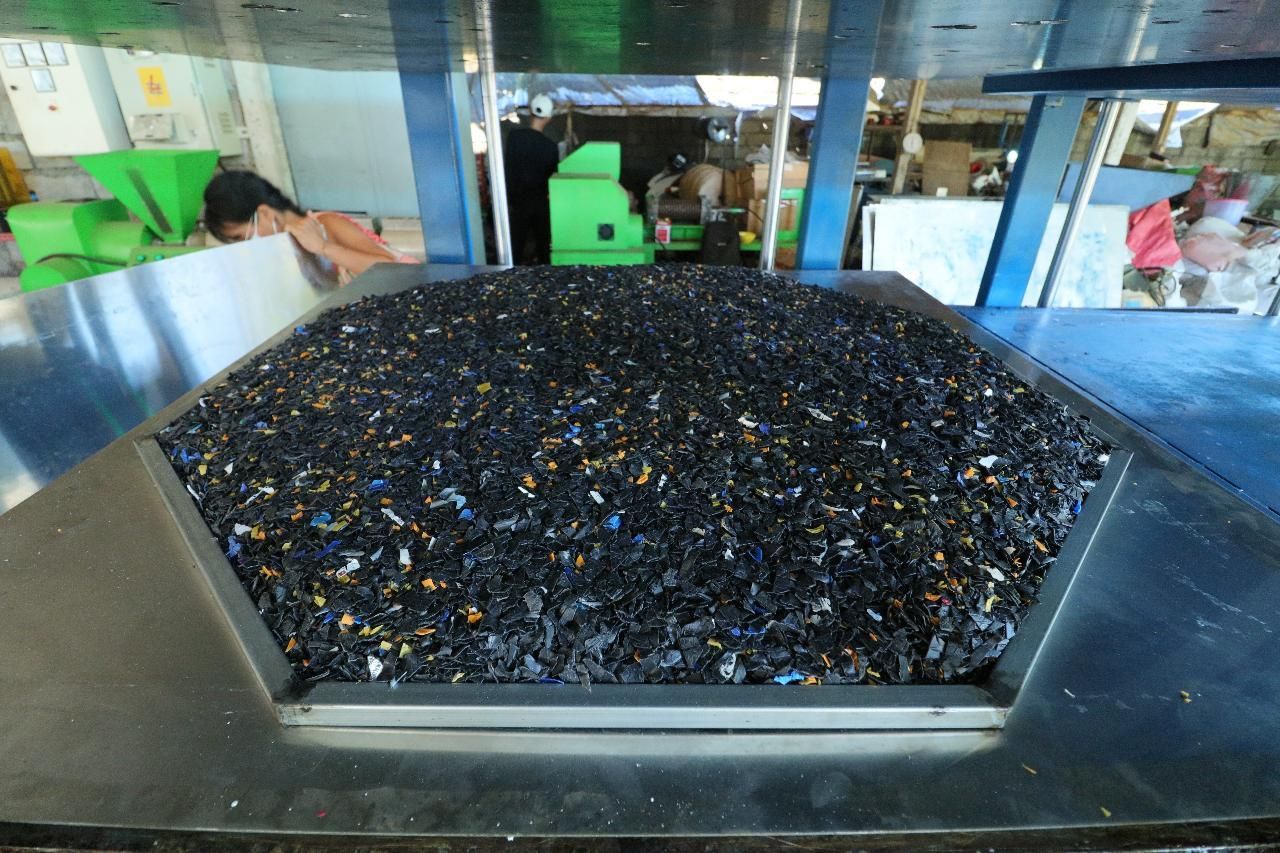

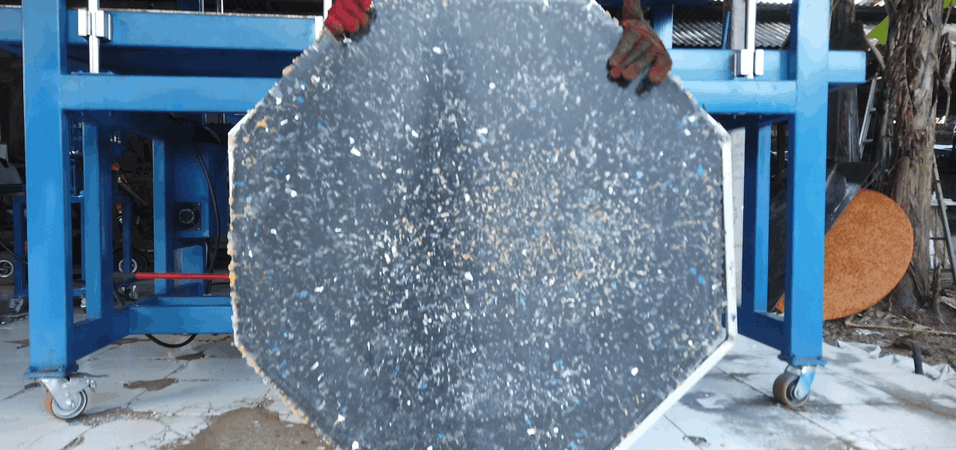

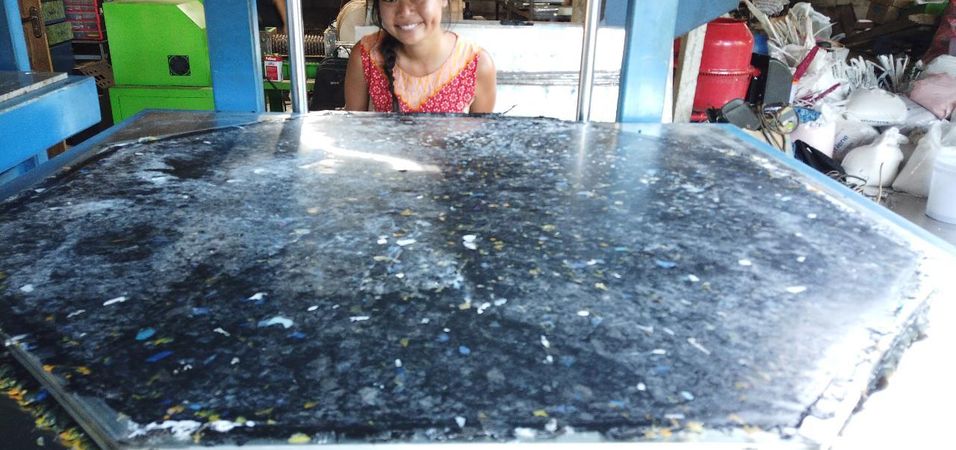

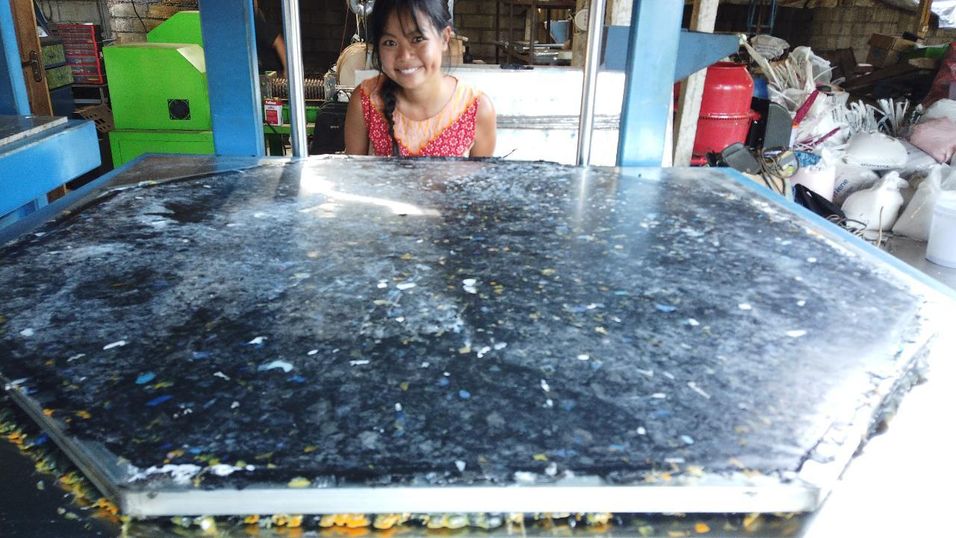

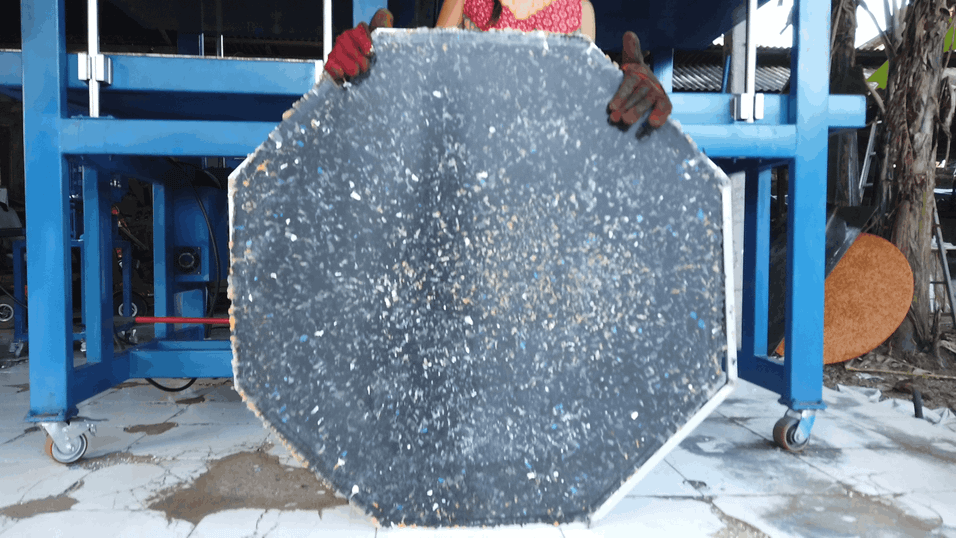

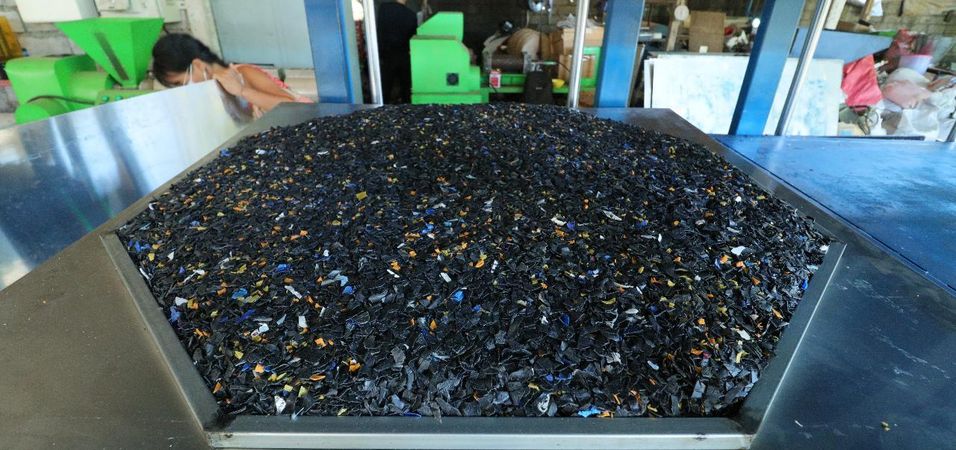

It's time to make your polygonal sheet. Use the area of your polygon (from the drawing) to determine the amount of plastic needed to make the sheet See precious plastic sheet press "how to" for a step by step tutorial of making a sheet: https://youtu.be/TNG2f_hKc_A Visit our profile and let us know if you have tried this :) Warmly, Wedoo Team
