Make notepad covers & springs

How to make small sheets and springs to assemble a notepad

< 1 hour

Easy

extrusionPPcompression

More Information

640 views

8 useful

0 following

0 comments

4 steps

1 Prepare your mix

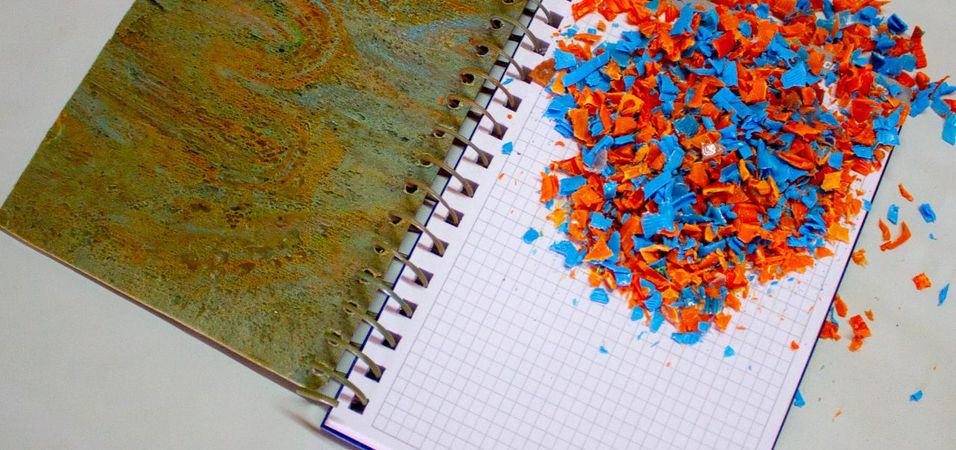

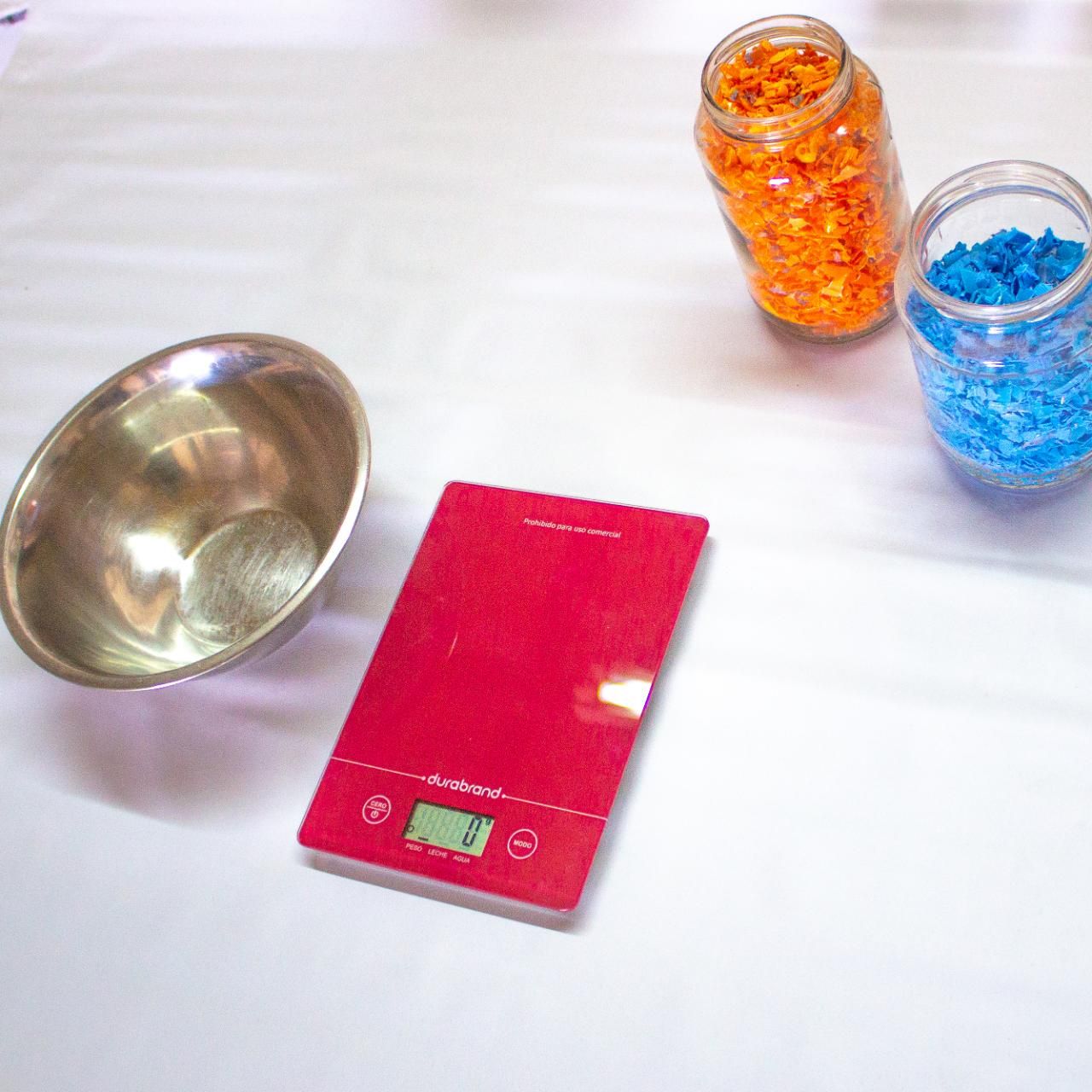

Select, weight, and mix the colors you want, we used PP shredded bottle caps.

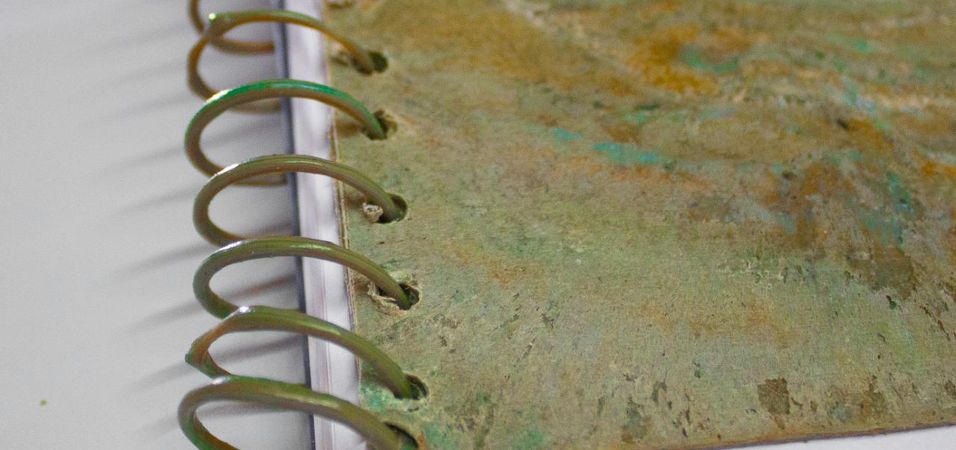

2 Make the springs

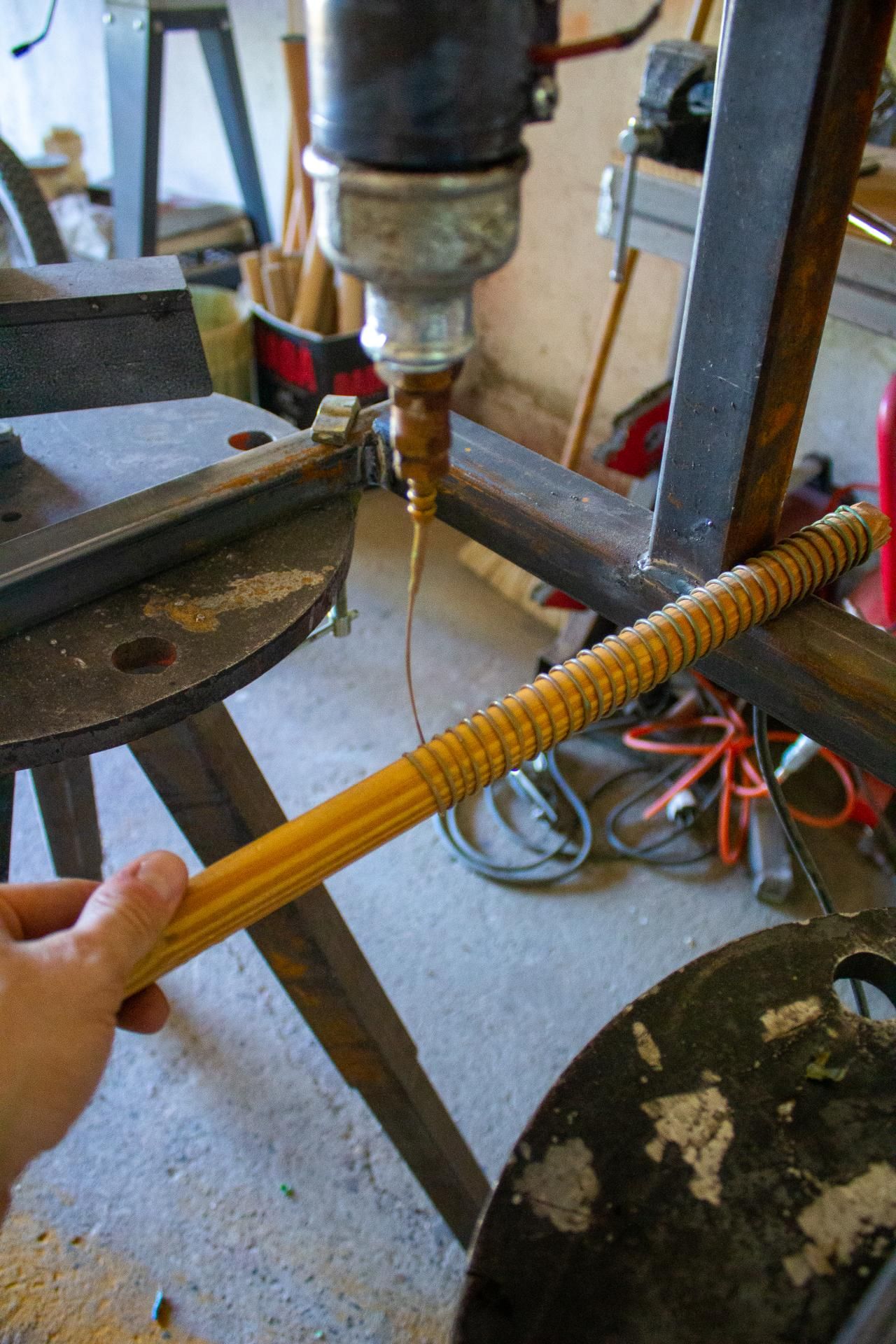

Fill the injection machine and wait for the plastic to start flowing, with a small nozzle and a constant weight applied on the machine, use a wooden rod to "screw" the filament around it, make it as long as you want, we recommend using a wooden rod because the plastics sort of sticks and makes it easier to form the spring.

3 Make the covers

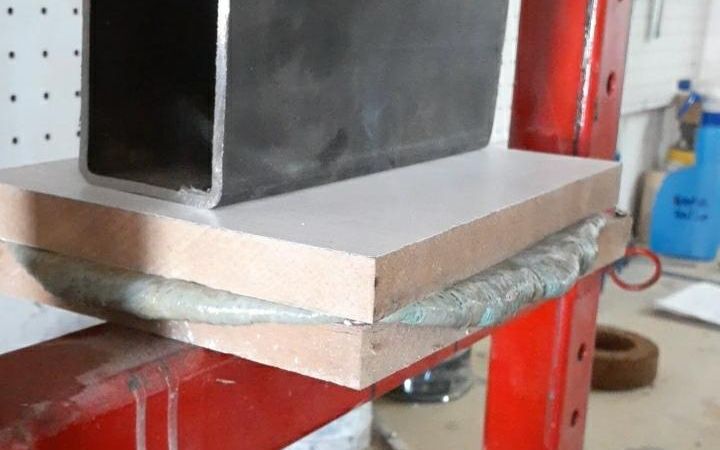

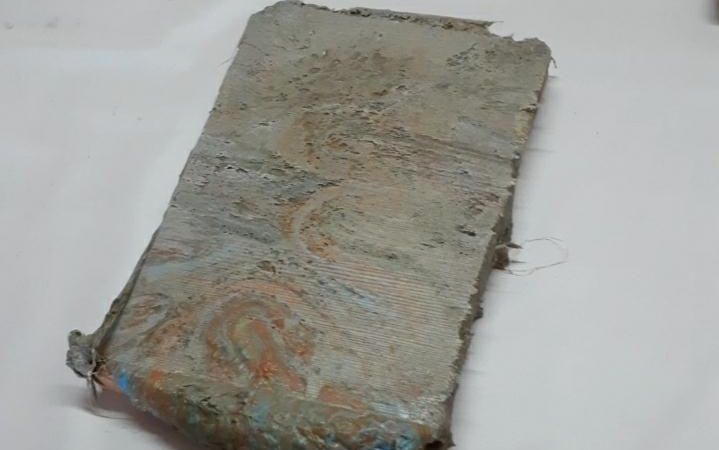

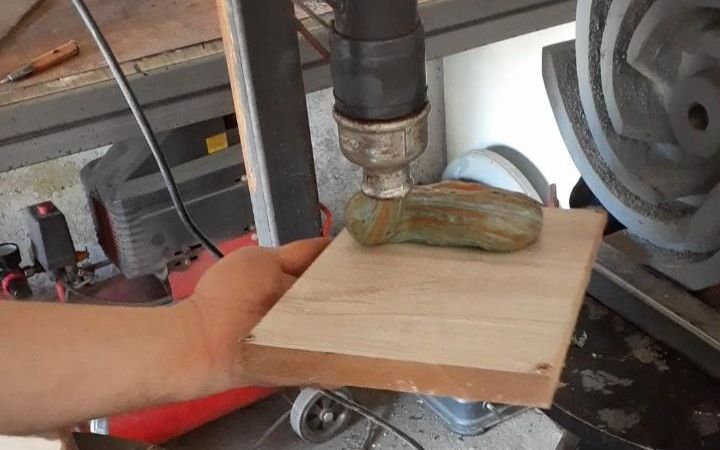

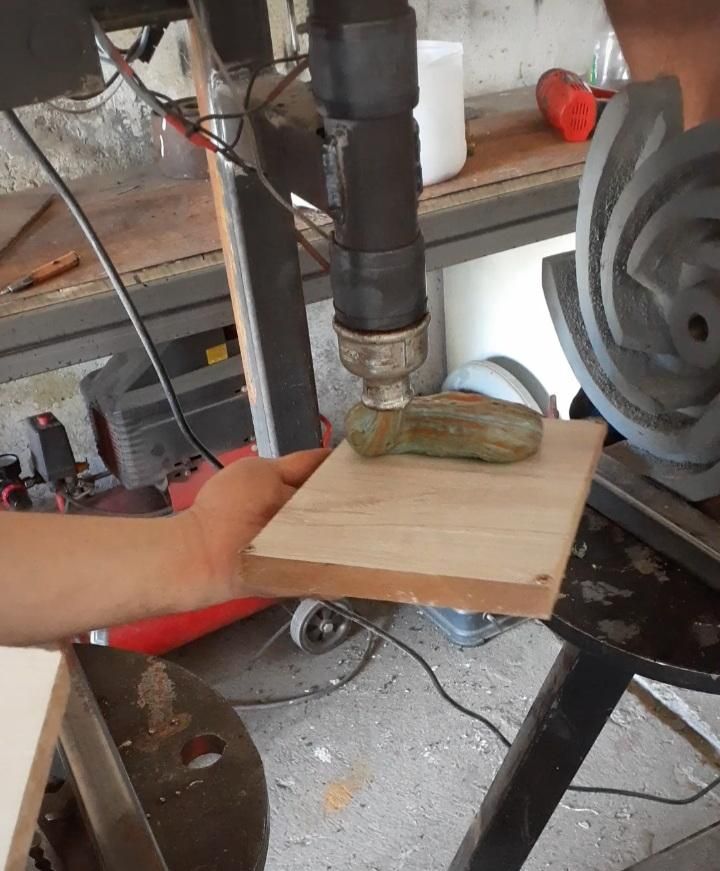

Remove the small nozzle from the injection machine and extrude some plastic on a flat sheet, press it against another sheet in a press, wait for it to cool and remove the plastic sheet, cut it to shape, make the holes and assemble the notebook.

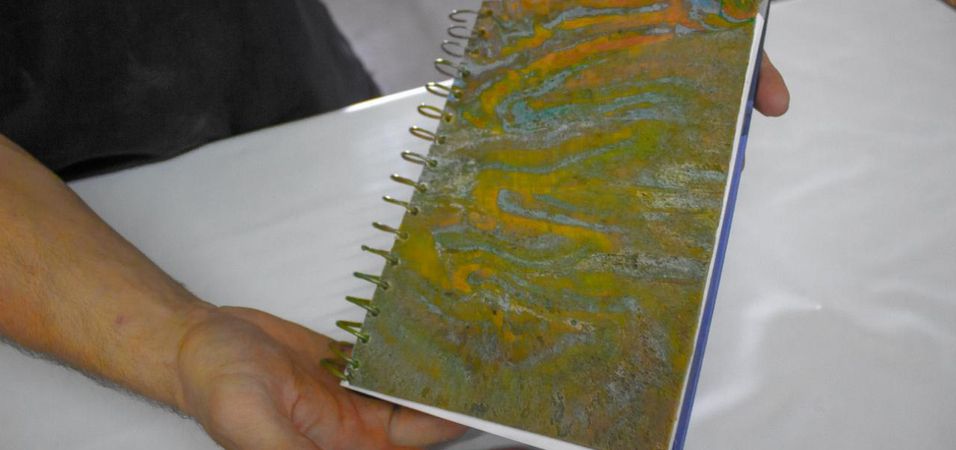

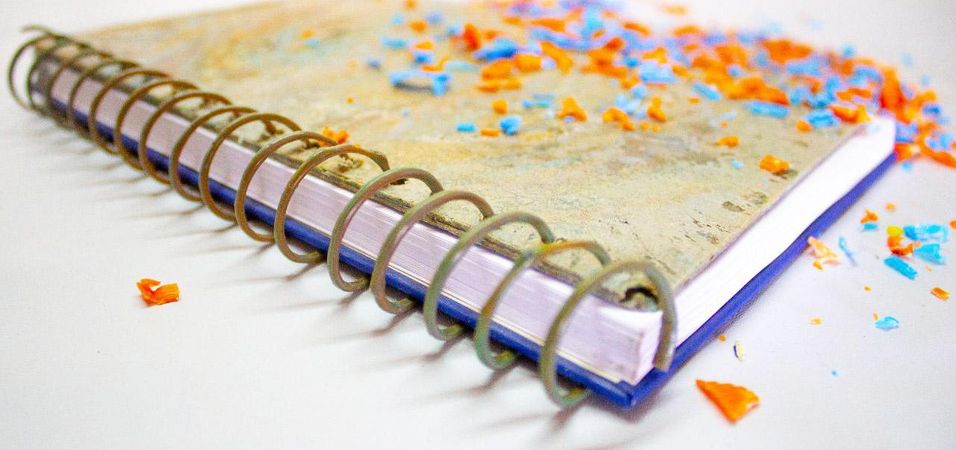

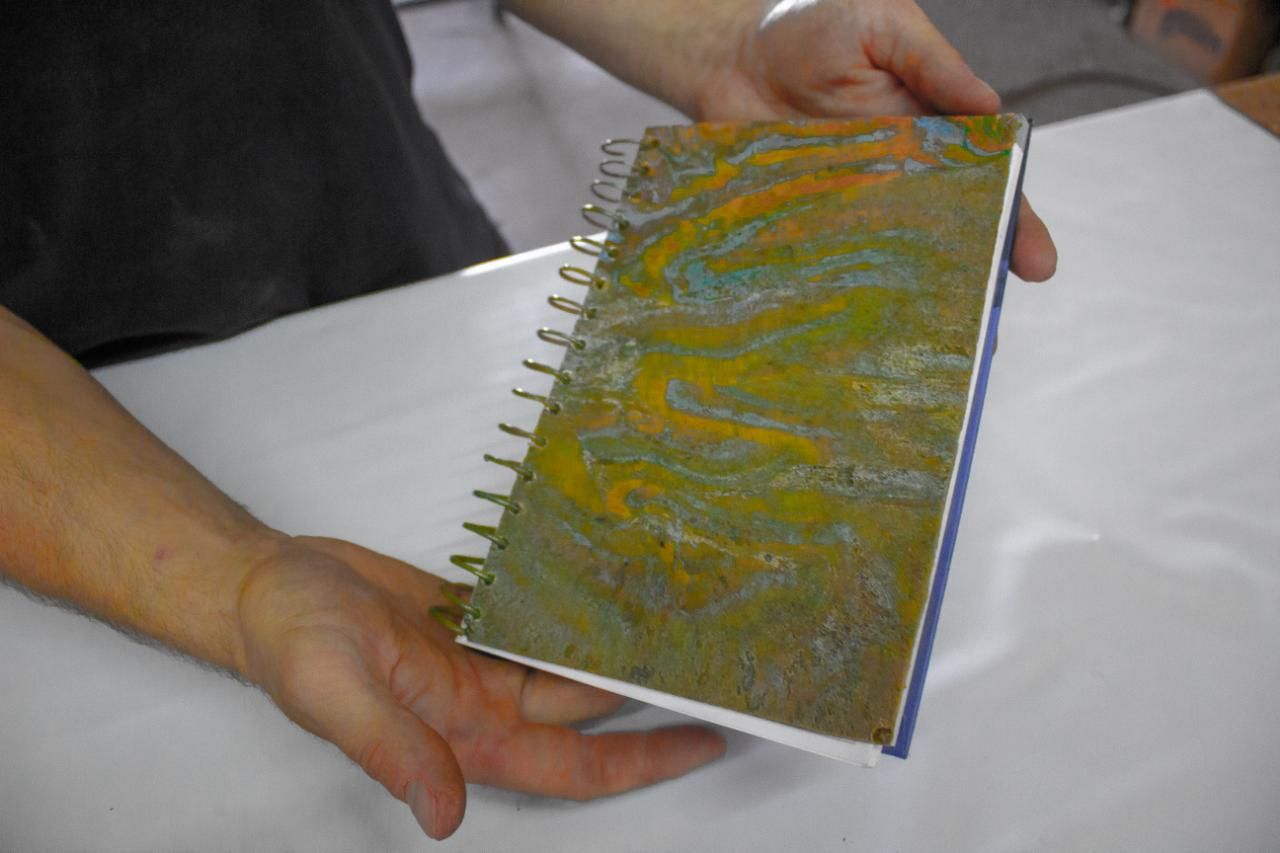

4 Enjoy your recycled booklet

Try different combinations, you can make the springs out of the same mixture of however you want :)
