Sun Concentrator for Solar plastic melting

In order to provide you with energy independence, volks.eco offers you a solar and portable solution reaching up to 250 ° C (482 ° F). This device is intended for the production of recycled plastic injections, according to the project carried out in collaboration and presented by Plastok.ch. [https://www.instructables.com/id/Solar-Plastic-Injection] -3D Model : https://a360.co/3ilST2c

< 1 week

Medium

Draft

More Information

319 views

0 useful

0 comments

8 steps

1 Cut the Wooden Planks

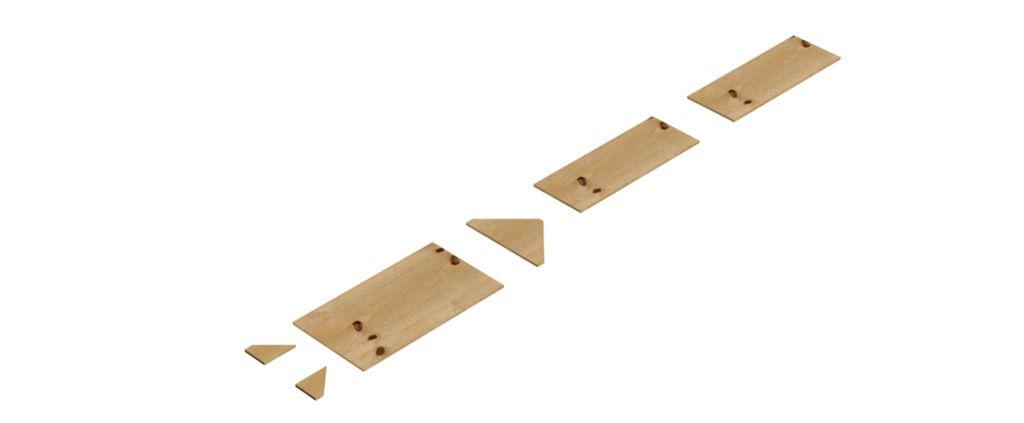

Cut wooden planks 12 millimeters thick, according to the dimensions indicated in the attached file. [mm]

2 Cut the Mirrors

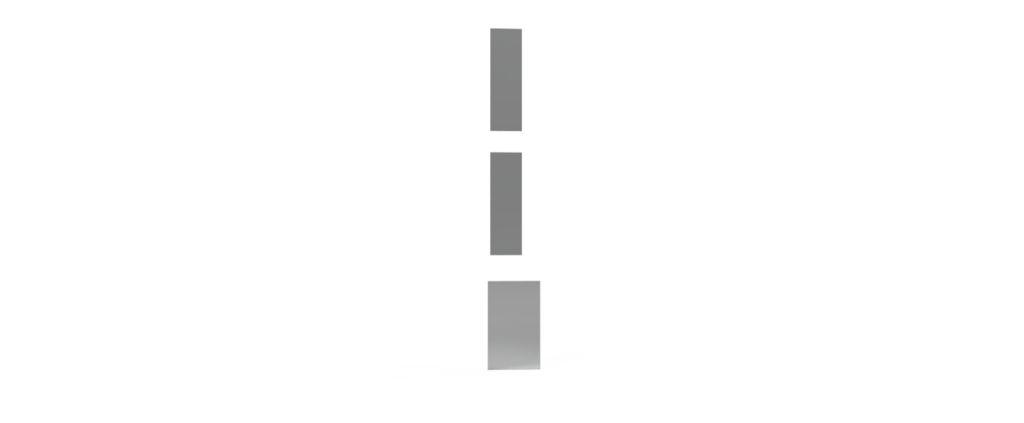

Cut the mirrors 4 millimeters thick, according to the dimensions indicated in the attached file. [mm]

3 Cut the Double Tape

Cut 6 double tape strips of 500 millimeters. If possible use a outdoor double tape

4 Assemble mirrors and planks

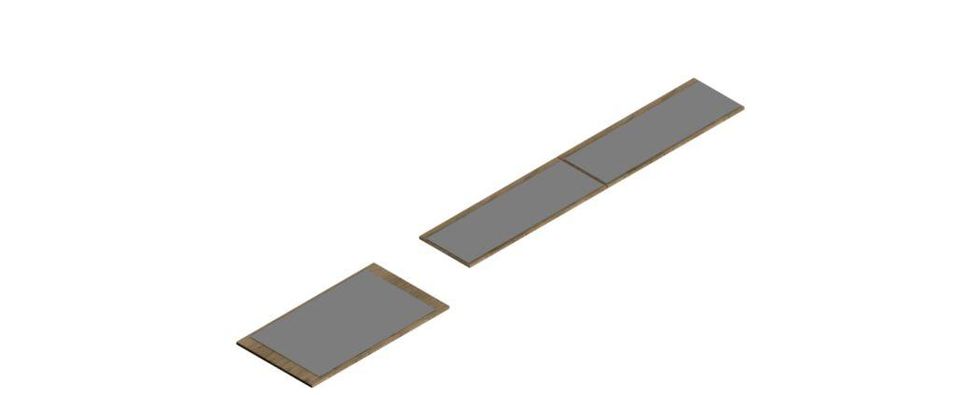

Assemble the mirrors and the wooden planks with double-sided tape according to the attached image. Please note the shutters are asymmetrical

5 3D Print concentrator Holders

Print the attached 3D files, preferably in ABS Use this link to download the 3D files : https://a360.co/3ilST2c

6 Assemble the Sun Collector

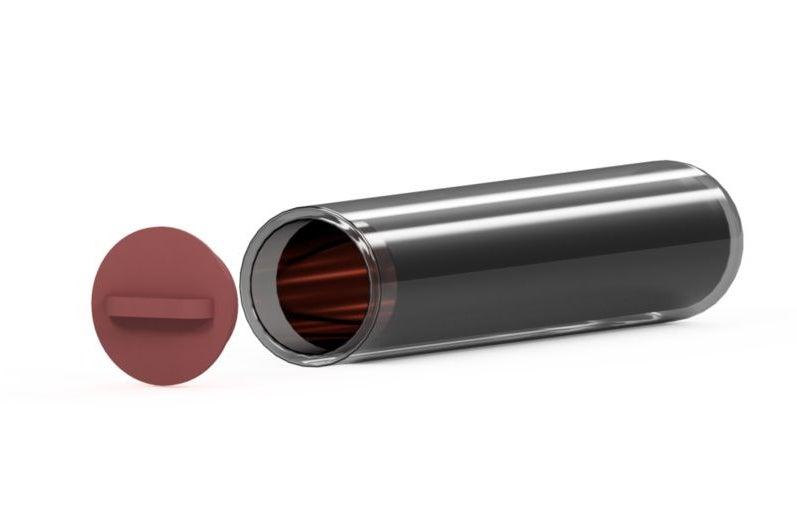

The sun collector made is made of tempered glass and can provide temperatures above 250°C To fixe the tube tighten the screws of the 3D printed front holder The overall size is 660 mm (overall) X 127mm outside diameter. The approximate interior dimensions are: 584 mm X 101mm inner diameter.

7 Assemble all pieces

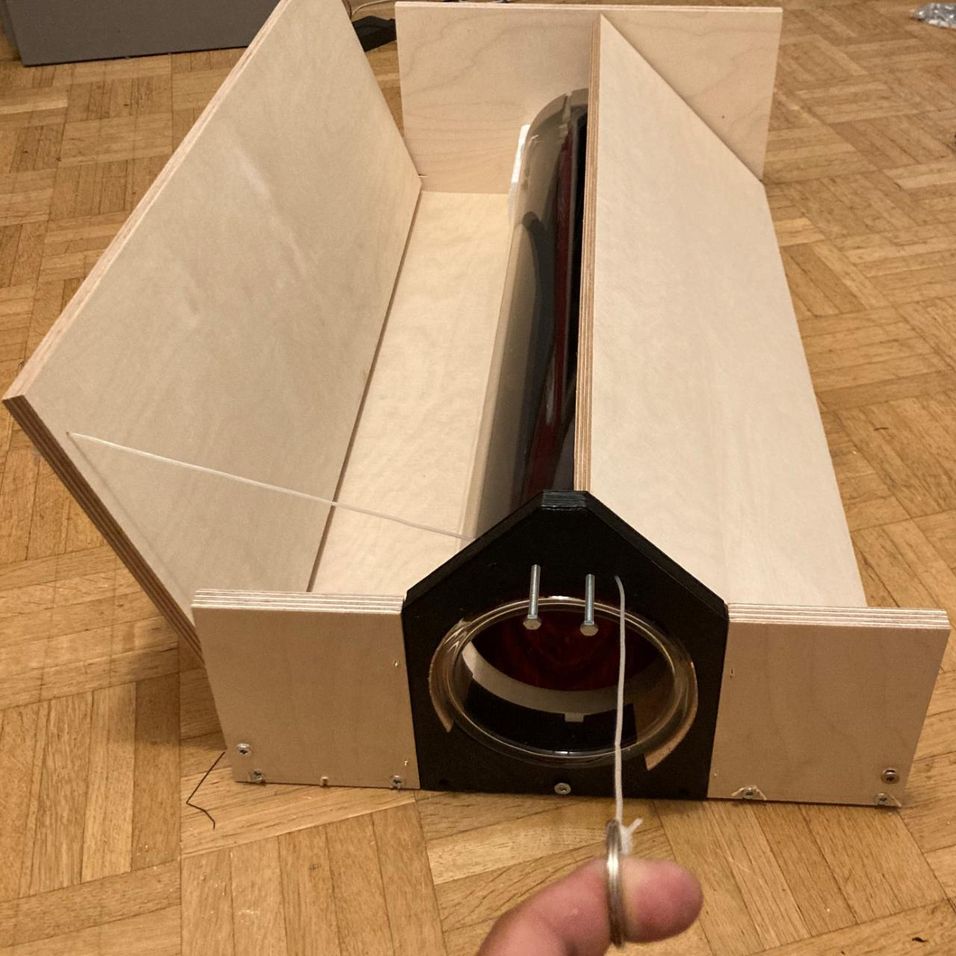

Assemble all components with wood screws and 2 3D print filaments. To assemble the shutters, first drill the hole for the screws to have a pivot effect.

8 Use the sun concentror

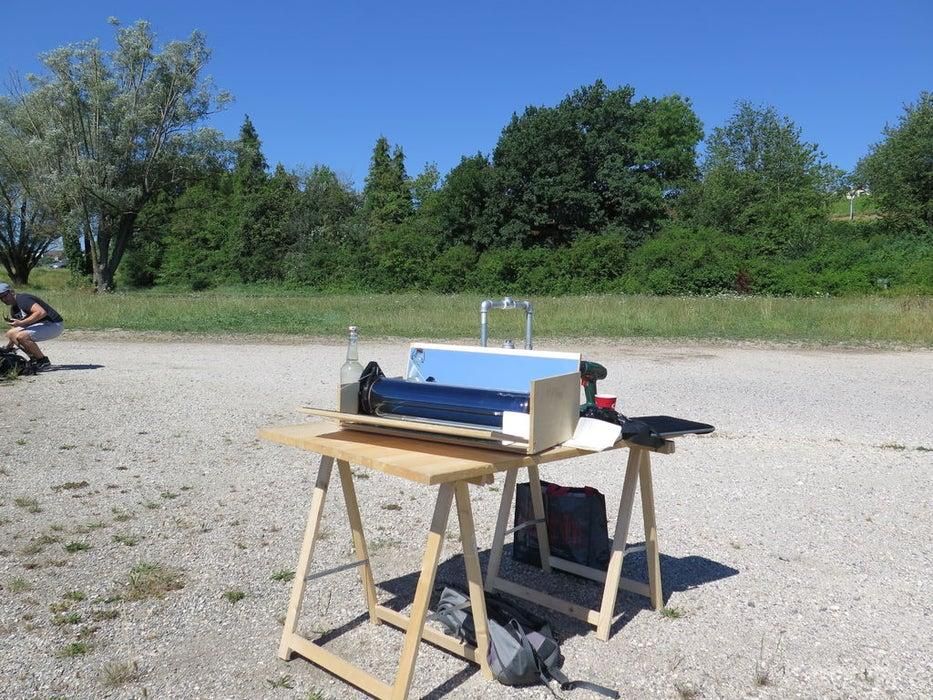

To use the solar concentrator, it is advisable to use temperature probes. The concentrator should be placed with the solar collector perpendicular to the sun light (12h - south). The shutters should be adjusted so that the maximum light is projected onto the collector, as shown in the picture.
