1.5m Sheetpress System - Designed for Disassembly
precious-plastic
| Published almost 4 years ago
Last update over 1 year ago
Machines

1.5m Sheetpress System - Designed for Disassembly

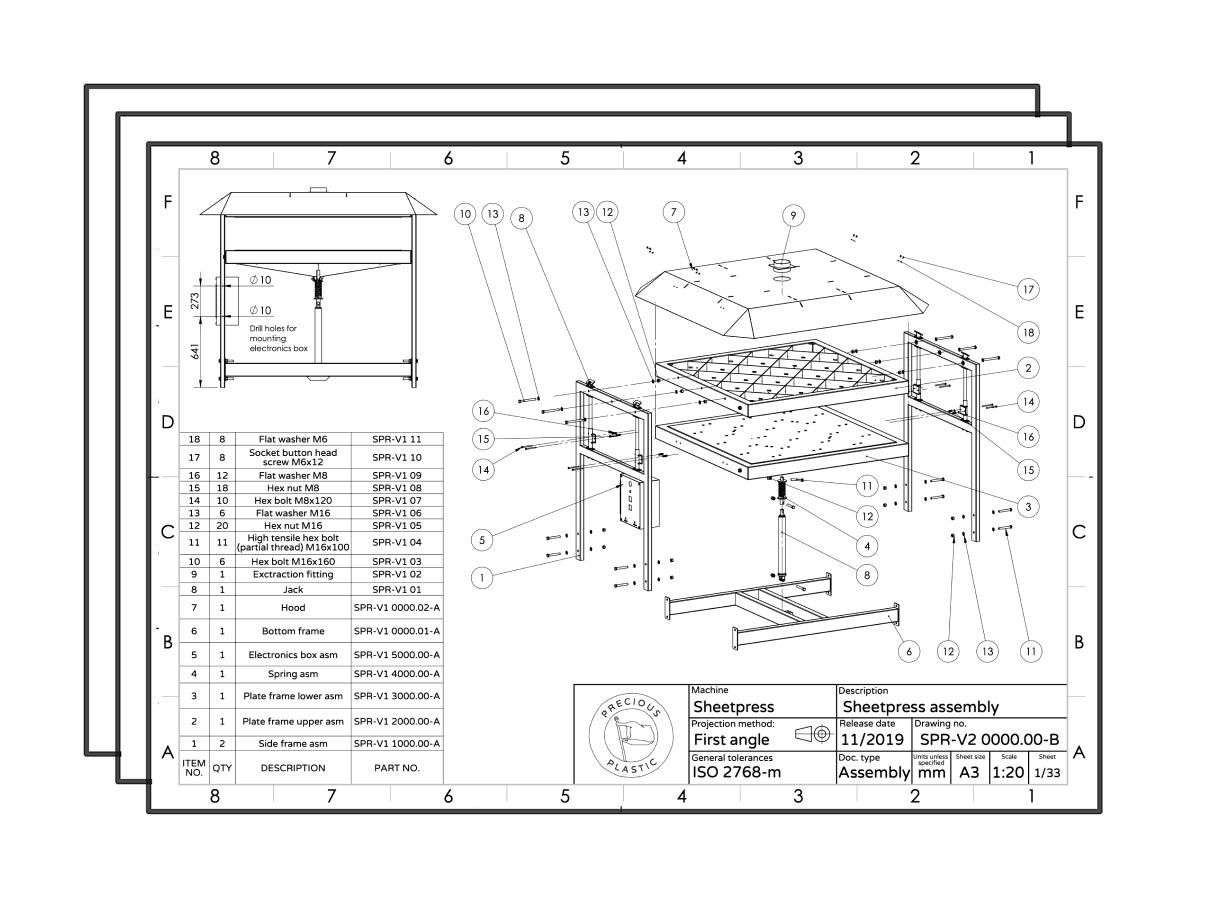

Complete set of blueprints, CAD files and instructions on how to build this upscaled sheetpress system. -56% larger pressing surface -Designed for easy disassembly -Improved electronics
1+ months
Hard
how-to cover

More Information
icon
1299 views
icon
21 useful
icon
0 comments
icon
5 steps

1

Download

Here's a link to the build folder: https://drive.google.com/drive/u/1/folders/19glmxFnX6oH5BvBAc8NxFk5f-9YG9HNb If you're setting up a sheetpress workspace, you should still download our sheetpress workspace starterkit from our academy. Just use this build folder instead of the build folder in the main starterkit. And here's a link to our original build video. The design is slightly different but the steps are the same: https://www.youtube.com/watch?v=j3OctDe3xVk

2

Bigger Press = Bigger Sheets

This system has been upscaled to a 1.5x1.5m pressing surface. This allows you to easily make plastic sheets at the standard 1.2x1.2m size and even a bit bigger. This is a 56% increase in capacity so you'll be able to recycle plastic at more than 50% the rate as the V4 press. Note: The press requires 1500x3000 sheets of steel and aluminium to build. It's also quite a bit heavier, so it's no longer possible to handle the parts in this machine without the assistance of a hoist or similar lifting device.

3

Designed for Disassembly

The whole system has been designed to be disassembled for easy packing and transportation. It now fits through a standard door when disassembled. The electronics box can also be unplugged and dismounted for transportation.

4

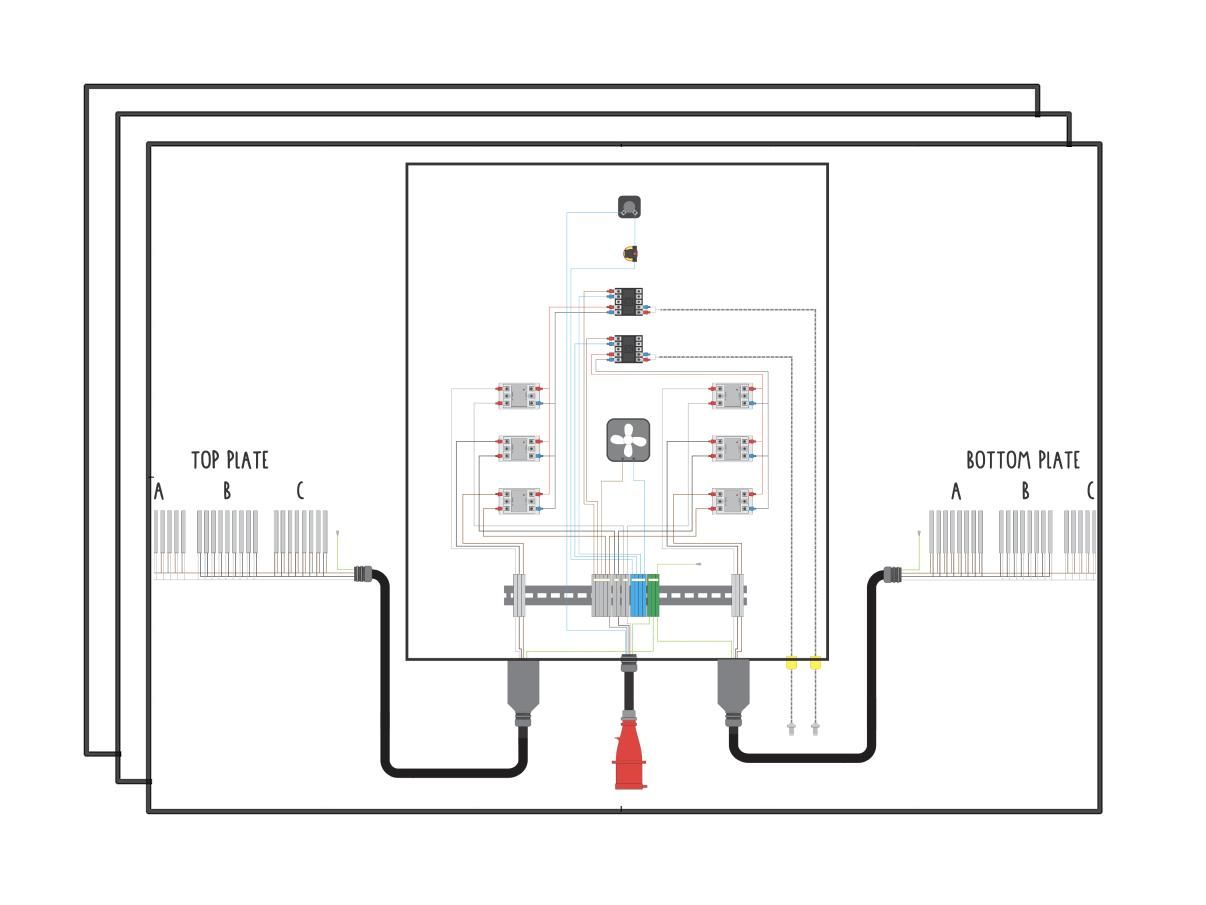

Improved Electronics

We've made some changes to the electrical system to better suit the increased power requirements of this larger machine.

5

Build it, hack it, share it!

If you have any other ideas, improvements or hacks for this machine - make sure to share them with the community. You can do this through a how-to, discord or instagram! Have fun building :)
